Single Motor Standing Desk Frames: When One Motor Is Enough
Three SHA2410 single motor frames and a glass-top desk compared on stages, height range and load from the catalogue.
What is a single motor desk frame?

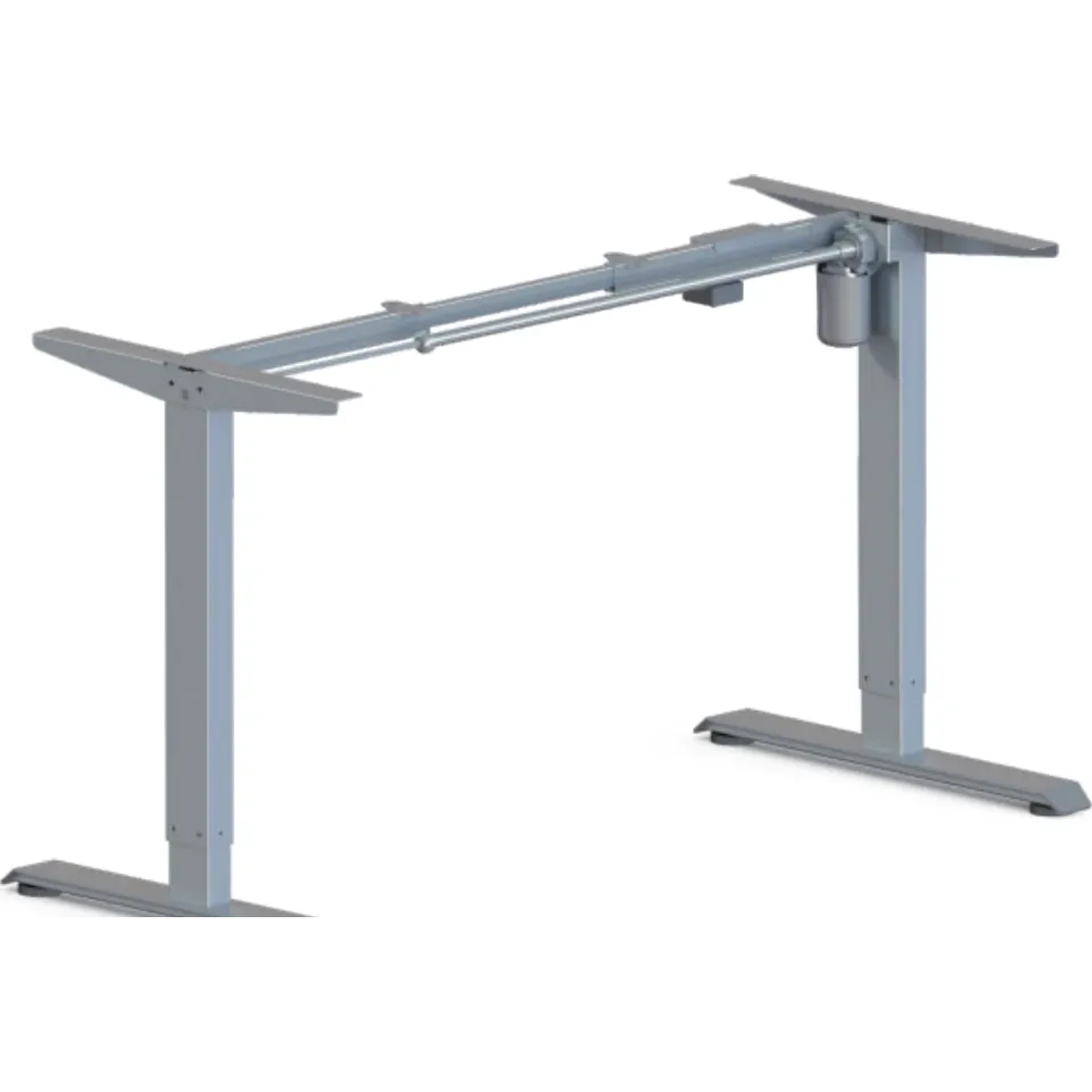

A single motor desk frame drives the lifting columns with one motor, which the catalogue lists at 25 mm/s maximum speed across the range. The single-motor-desk-frames category covers three SHA2410 frames (2S, 3S, EC) and the SHA2410-GT glass-top standing desk.
How do the three SHA2410 frames compare?
The SHA2410-2S and SHA2410-3S share an 800 N load rating, 1005-1600 mm frame length and 100-240 V input; the 2S uses a two-stage 80 x 50 mm column with 700-1150 mm height range, while the 3S uses a three-stage 90 x 60 mm column with 600-1250 mm. The SHA2410-EC keeps the two-stage column but shortens the frame length to 800-1400 mm. All three run a 10% duty cycle, max. 2 min. on, in white, black or grey.
What does the glass-top SHA2410-GT add?
The SHA2410-GT ships as a complete standing desk on a two-stage 70 x 70 mm column with 710-1160 mm height range and a 1200 x 600 mm, 6 mm tempered glass tabletop. Its load rating is 500 N and colors are white and black, with the same 25 mm/s speed and 10% duty cycle.
Which programme sizes suit each model?
The three-stage 3S spans 600-1250 mm, the widest height range in the group, for shared desks that many users adjust. The EC's 800-1400 mm frame length fits compact footprints where a 1005-1600 mm frame would not close down far enough. The GT suits finished workstations sold as a set rather than frame-plus-tabletop configurations.
What should a buyer send for confirmation?
Send the tabletop size, the required height range, the load, the frame length range and the color so the SHA2410 variant can be confirmed from the catalogue, together with the matching handset from the desk-handsets range.
